Key Features
- Precision brushless DC servo motor drive for accurate, repeatable dispensing
- Modular design simplifies tungsten-carbide screw assembly adjustment and replacement
- High-efficiency screw-feed mode improves production throughput
- Replaceable super-hard alloy screw assembly for extended service life
- Large-pitch feed screw with multiple pitch options for high flow rates
- Quick-disassembly modular screw assembly for easy maintenance
- Patented structure reduces consumable cost during maintenance
- Continuous spiral material feed ensures long-term dispensing stability
Compatible Materials
Designed for PUR hot-melt adhesive, PUH hot-melt adhesive and other high-temperature melt fluids.
Typical Applications
- Automotive component bonding, encapsulation, sealing and filling
- Consumer electronics assembly and sealing
- Semiconductor packaging and underfill
- Optical product bonding and sealing
- Medical device assembly
- Fiber-optic communication product potting and sealing
- 3C electronics, life sciences and photovoltaic industries
- Dot coating and line coating of hot-melt adhesives
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TD908CS-30 |
| Applicable Viscosity | 10,000 – 500,000 cps |
| Motor | DC servo motor |
| Motor Speed | 400 rpm |
| Accuracy | ±0.001 ml |
| Rotor Material | Carburized steel |
| Input Pressure | 0 – 6 kgf/cm² |
| Wetted Parts Material | SUS304 / PTFE |
| Operating Temperature | Valve body max. 200 °C; adhesive barrel max. 150 °C |
| Valve Weight | 1.0 kg |
| Applicable Adhesives | Hot-melt pellets, 30 ml hot-melt adhesive, etc. |
| Controller Functions | Speed/time setting, suck-back, automatic purging |
| Communication | RS232 |
| Nozzle Options | Standard metal nozzle, precision nozzle, custom nozzle |

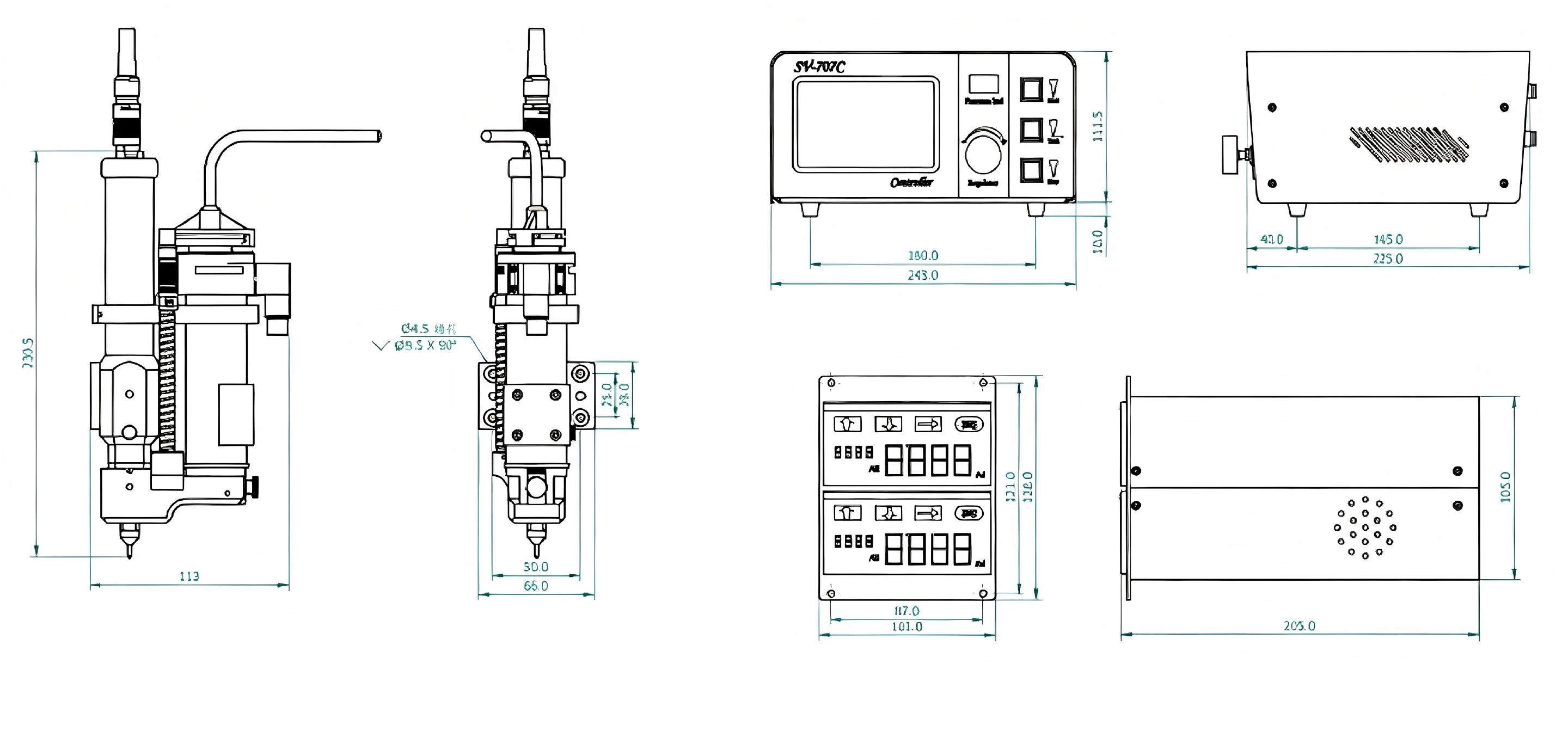

Outline Dimensions Refer to the engineering drawing below for detailed layout dimensions (mm).
Why Choose the TD908CS-30
The TD908CS-30 replaces inconsistent pneumatic dispensing with a precision servo-driven screw, giving you micro-volume repeatability down to ±0.001 ml. Its modular tungsten-carbide screw assembly is quick to replace and built for long production runs, while the patented valve structure keeps maintenance consumables to a minimum. With SUS304/PTFE wetted parts and temperature capability up to 200 °C on the valve body, it handles PUR and PUH hot-melt fluids reliably across automotive, electronics, medical and optical applications.
