Key Features
- Positive‑displacement volumetric fluid delivery, output proportional to motor rotation speed
- Closed‑loop DC servo motor drive for high‑precision quantitative dispensing
- Special soft‑shaft design, anti‑jamming even under high‑speed running
- Rotor: SUS304 with Ti‑coating, high surface finish and excellent wear‑resistance
- Stator core made of FFKM / FKM material, outstanding corrosion resistance
- Powerful suck‑back function, completely avoid dripping and stringing
- Wide viscosity adaptability, cover low‑viscosity liquid to high‑viscosity paste

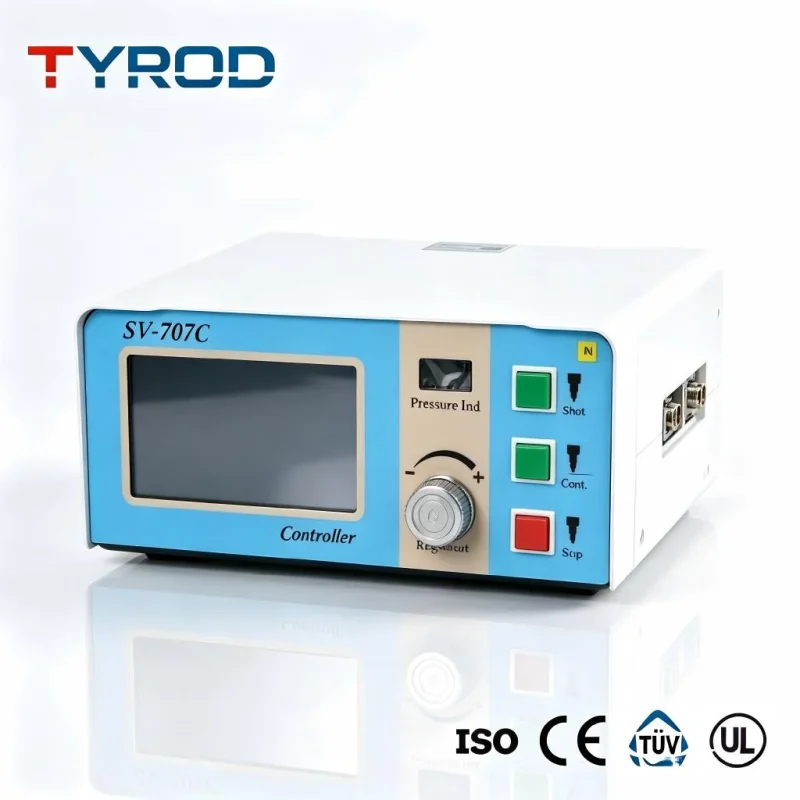

- Controller supports speed setting, suck‑back, feed pressure adjustment, timed purge
- RS232 communication interface for automation system integration
- Compact valve‑body (0.7 kg), easy mounting on robot and dispensing platform
Compatible Materials
Suitable for silicone, epoxy resin, grease, thermal conductive gel, solder paste, thermal silicone grease and other medium‑high‑viscosity fluids. Also works for pastes containing tiny solid fillers.
Typical Applications
- Consumer electronics assembly & component bonding
- Automotive electronics, sensor sealing & potting
- New‑energy power module thermal grease filling
- SMT & PCBA precision quantitative dispensing
- Optoelectronic device, camera module dispensing
- Industrial sealing, potting and continuous coating process
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TD‑SE01‑X3 |
| Drive Motor | DC Servo Motor (Closed‑loop) |
| Rated Motor Speed | 130 rpm；Max shaft speed up to 12000 r/min |
| Dispensing Accuracy | ±0.001 ml |
| Viscosity Range | 0‑500,000 cps |
| Feed Inlet Pressure | 0‑6 kgf/cm² |
| Rotor Material | SUS304 with Ti Coating |
| Stator Core Material | FFKM / FKM |
| Wetted‑part Material | SUS304 / PTFE |
| Operating Temperature | 0‑50 ℃ |
| Valve Weight | 0.7 kg |
| Controller Functions | Speed setting, suck‑back, supply pressure, timed purge |
| Communication Interface | RS232 |

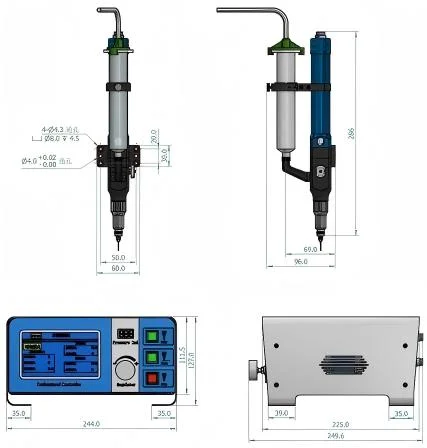

Outline Dimensions: Refer to engineering drawing for detailed dimension data (mm).
Why Choose TD‑SE01‑X3 Screw Valve
TD‑SE01‑X3 is positive‑displacement volumetric screw dispensing valve. Output volume strictly follows motor rotation count, not susceptible to glue pressure or viscosity variation. Anti‑jamming soft‑shaft and titanium‑coated rotor extend service life. The matched controller provides suck‑back and timed purge functions to prevent dripping and residual glue. RS232 communication supports integration with automated production lines. Light‑weight compact structure makes it ideal for robot‑mounted high‑volume precision dispensing for automotive, new‑energy, consumer‑electronics industries.
